SPECIFICATIONS
- Brand Name : Aideepen
- Origin : Mainland China
- Model Number : High Precision Inductance Meter
- is_customized : Yes
- Certification : none
- Circuit board size : 8.0x4.52CM
- Dimensions with casing : 9.1CMx4.7CMx2.6CM
- Inductance measurement range : 5μH-10MH
- Measurement range of small capacitance : 10pF-1μF
- Charging model : Equipped with USB charging cable
- 5V power supply : Equipped with 5V USB power cord
- Measurement unit : 100000015
- Sold in : sell_by_piece
- each pack : 1
- Package size - height (cm) : 4
- Package size - length (cm) : 14
- Package size - width (cm) : 10
- Package weight : 0.075
Features:
1.100% brand new and high-quality products.
2.Made of high-quality materials, durable and practical.
3.Small size, simple application, and convenient installation.
4.Efficient and stable performance, long working life.
5.It has a wide range of applications and can be used in multiple scenarios.
Parameters:

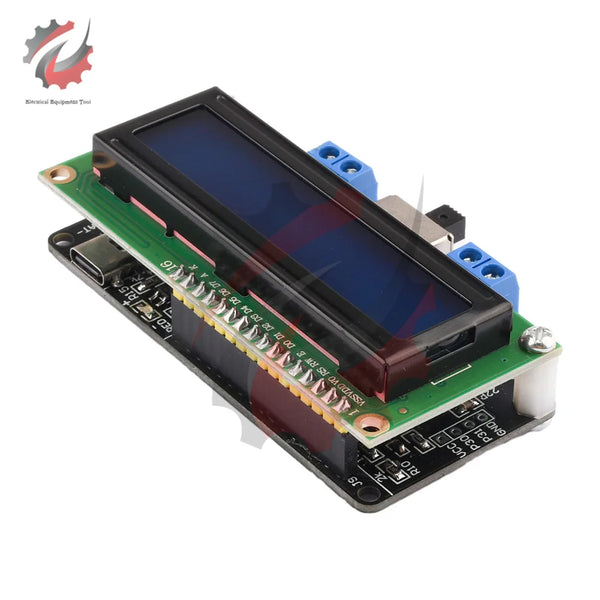

Circuit board size: 8.0 * 4.52CM
Size with shell: 9.1CM * 4.7CM * 2.6CM
Power supply method: 5V power supply or internal battery power supply (rechargeable with a built-in 502030 lithium battery)
Description of various gear ranges:
Inductance measurement range: 5 μ H--10MH
Measurement range of small capacitance: 10pF ------ -1 μ F (non polar capacitor)
Charging model: equipped with USB charging cable
5V power supply model: equipped with 5V USB power cable
Usage: Turn on the side power switch, turn the power switch to the ON end, and if you want to measure the non-polar capacitance, turn the front toggle switch to C; If the inductance is measured, turn the front toggle switch to the L end, and then connect the device to be measured, the screen will display the corresponding test results.
Pay attention to the following instructions:
1.Due to the lack of rounding and false optimization of readings, the actual test values are real-time data, and it is normal for the mantissa to constantly jump;
2.The testing contact should be reliable and good as much as possible;
3.When testing, connect the components to be tested and release your hand to avoid hand interference affecting the reading.

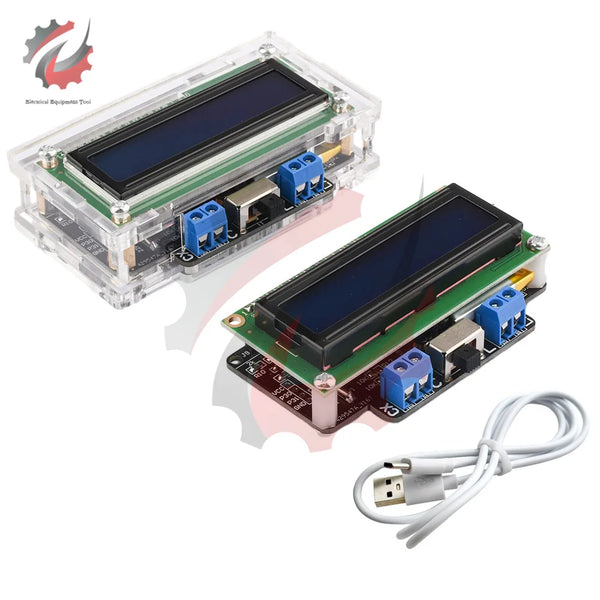

Package include:
Capacitance and inductance tester * 1
Wiring * 1
